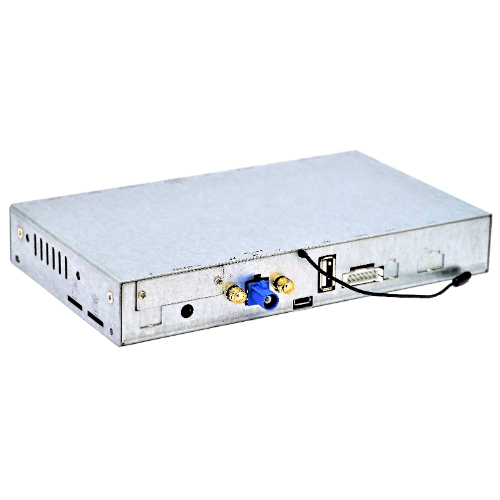

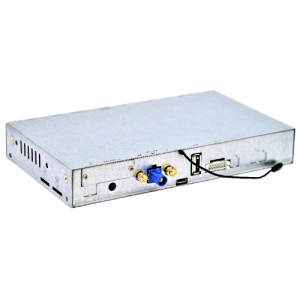

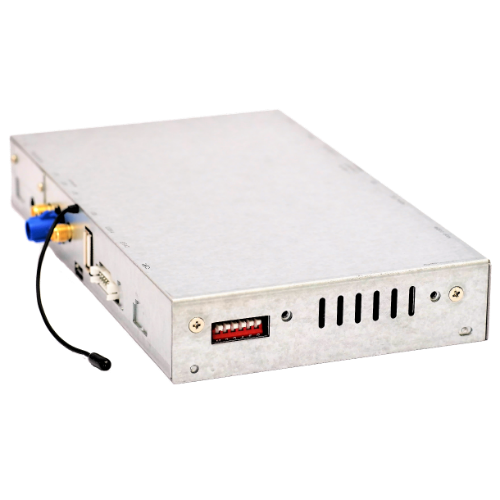

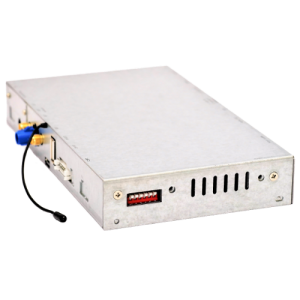

CNT100 IoT Multimedia Player for RGB is an universal Android box which supports two different displays: JVC and Toyota Panasonic, the detailed product features and specifications are as follows:
Core Features:
- Fast power on mode
- Multiple resolution supported
- CVBS/RGB output (optional)
- Embedded 4G LTE Qualcomm Cortex quad-core supports worldwide frequency bands
- GNSS supported (GPS/GLONASS/BEIDOU)
- WI-FI/Bluetooth 4.1 on board to head unit
- Multiple touch supported: capacitive, 4-pin resistance, and UART
- IR remote supported
- AV (x2) in and CVBS (x4) in (optional)
- USB camera supported
- External UART port (x2)/GPIO (x2)
- External USB port x 2
- Microphone in and stereo speaker out
- NAVI mute
- Support Car mode auto or manual mode and parking enable for safety control
- Optional DTV module (DVBT1/T2 or ISDB full segment)
- WIFI Miracast/Airplay (by 3th party APK)
Specifications:
Chipset: Qualcomm Cortex A7 Quad Core 1.1GHz
Memory: 1G LPDDR3
8G EMMC
Wi-Fi: 802.11 b/g/n
Bluetooth: Bluetooth 4.0
GNSS: GPS/GLONASS/BEIDOU
Communication: GSM/CDMA/WCDMA/LTE
USB: 5
External Storage: Micro SD
SIM Type: Micro SIM
I/O Features:
Video Out: RGB/CVBS
Video In: CVBS/Camera in
Audio Out: Bluetooth A2DP to head unit/mono speaker out
Audio In: Microphone in
OS Features:
Android 5.1.1: Phone/Message/YouTube/Chrome/Voice Command
OS update by USB/micro SD
Firmware update by USB/micro SD
Touch Features:
UART: 8N1, 9600~115200bps
Resistive: 4-pin
Capacitive (optional)
CAN Bus (optional)
Power Consumption:
Voltage: DC 12~24V
Maximum: 50W
Minimum: 3mA/12V
Accessories:
For Toyota Panasonic and JVC

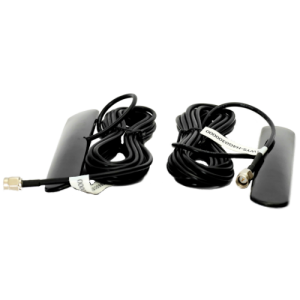

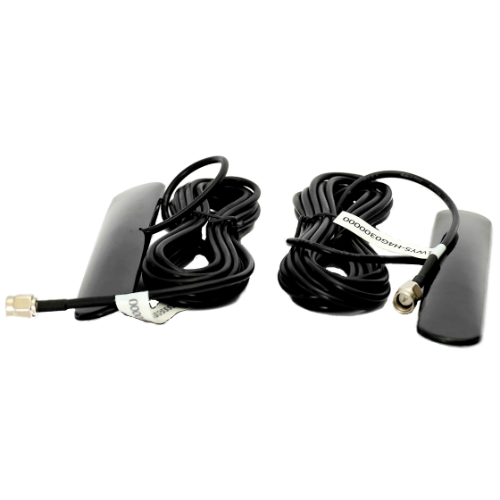

3G/4G Antenna x 2
GNSS Antenna x 1
Power Cable (with UART touch and RGB) x 1
AUX Cable x 1
USB extension cable x 1 (optional)
For GU
3G/4G Antenna x 2
GNSS Antenna x 1

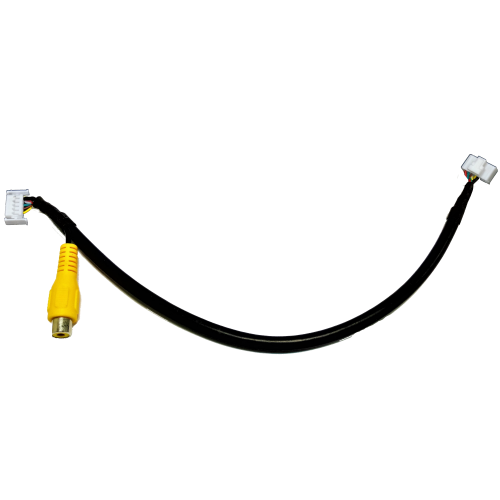

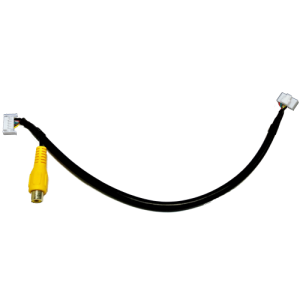

Power Cable (with UART touch and RGB) x 1
4-pin touch cable x 1
RGB/CVBS cable x 1
AUX Cable x 1
USB extension cable x 1 (optional)
Dimensions and Weight
170 x 100 x 27mm (L x W x H)
650g
