The light-sensing foot activation technology brings smart tailgate functionality into the era of virtual touch, making the operation of electric tailgate simpler and more engaging. When the car owner, carrying the car key (or Bluetooth Tag), approaches the rear of the vehicle, the system automatically detects their presence and uses optical projection technology to display a specific pattern on the ground, unaffected by weather or terrain conditions.
The owner only needs to lightly step on the projected area, and the module will accurately detect the action and send a command to automatically open the tailgate, ensuring a safe distance in the process.
The projected pattern or logo can be customized, enhancing corporate brand image.
Revolutionizing Tailgate Access
Technology Highlight:
- This system replaces physical interaction with virtual touch, utilizing advanced light and motion-sensing technologies.
- Optical projection ensures clear visibility of activation zones under various conditions.
Core Features:
- Contactless Operation: Activates the tailgate without needing to touch the vehicle.
- Smart Key Detection: Identifies the owner’s key or Bluetooth tag to enable the function.
- Custom Branding: Allows companies to incorporate unique logos or patterns into the projection to increase corporate image.
User Experience:
- The intuitive design reduces user effort and enhances convenience, especially in scenarios where hands-free operation is beneficial, such as carrying groceries or luggage.
- The system’s responsiveness and precision ensure reliability and user satisfaction.
Product Specifications
- Operating voltage：8~36V
- Operating current：< 460mA
- Operating temperature：-40~+85℃
- Storage temperature：-40~+95℃
- Protection level：IP67 (main device)
- IP65 (Bluetooth tag)
- Projection color: Green
- Typical power consumption：<5W
- Installation height：350~400mm
- Installation angle：10 degrees

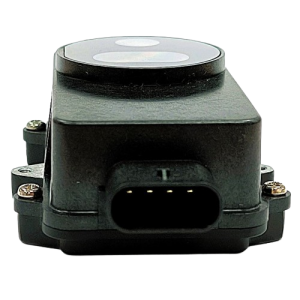

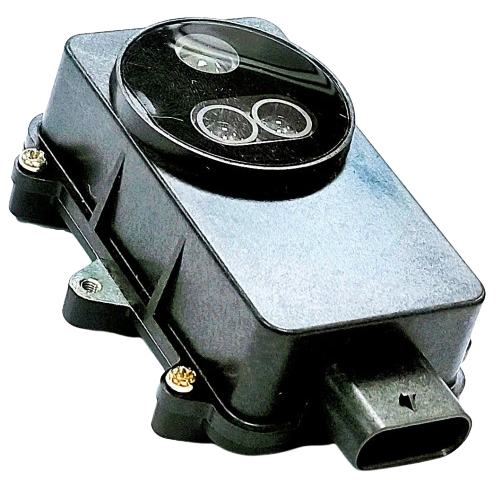

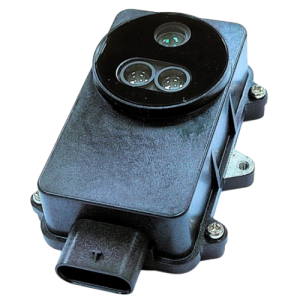

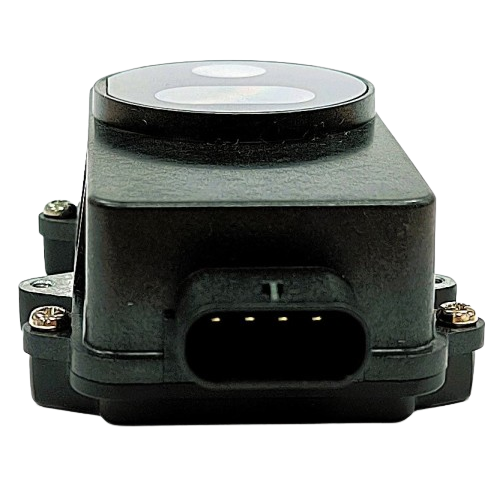

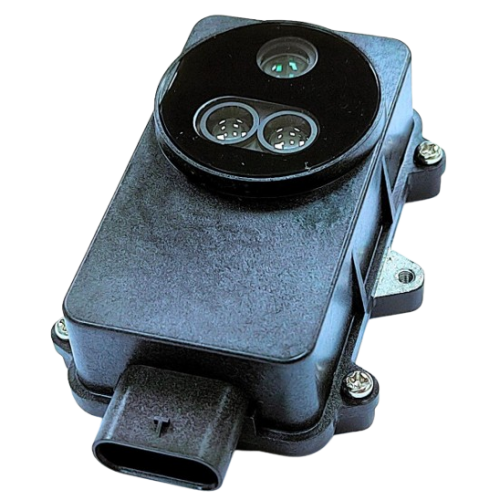

- Main device size：103 x 60 x 35mm (L x W x H)

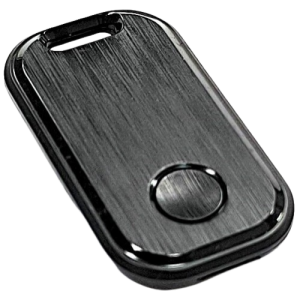

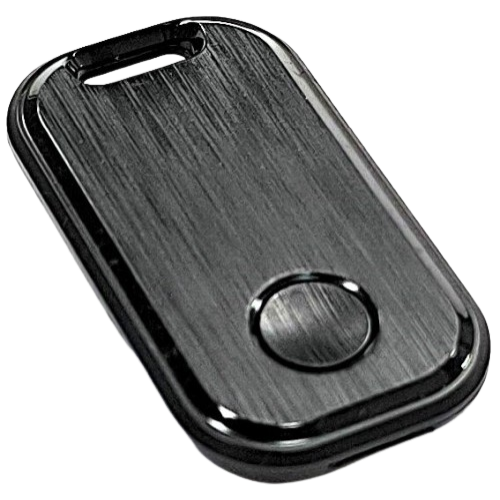

- Bluetooth tag size：56 x 34 x 7mm (L x W x H)
- Main device weight：85g
- Bluetooth tag weight：8g
- Relative position between the lens and the projected logo：15cm
- Bluetooth Tag is able to identify 2 sets of ID
- Dedicated app can be used to fine-tuning settings (e.g. sensing distance, foot-operated response time, door opening time, etc.)
